Description

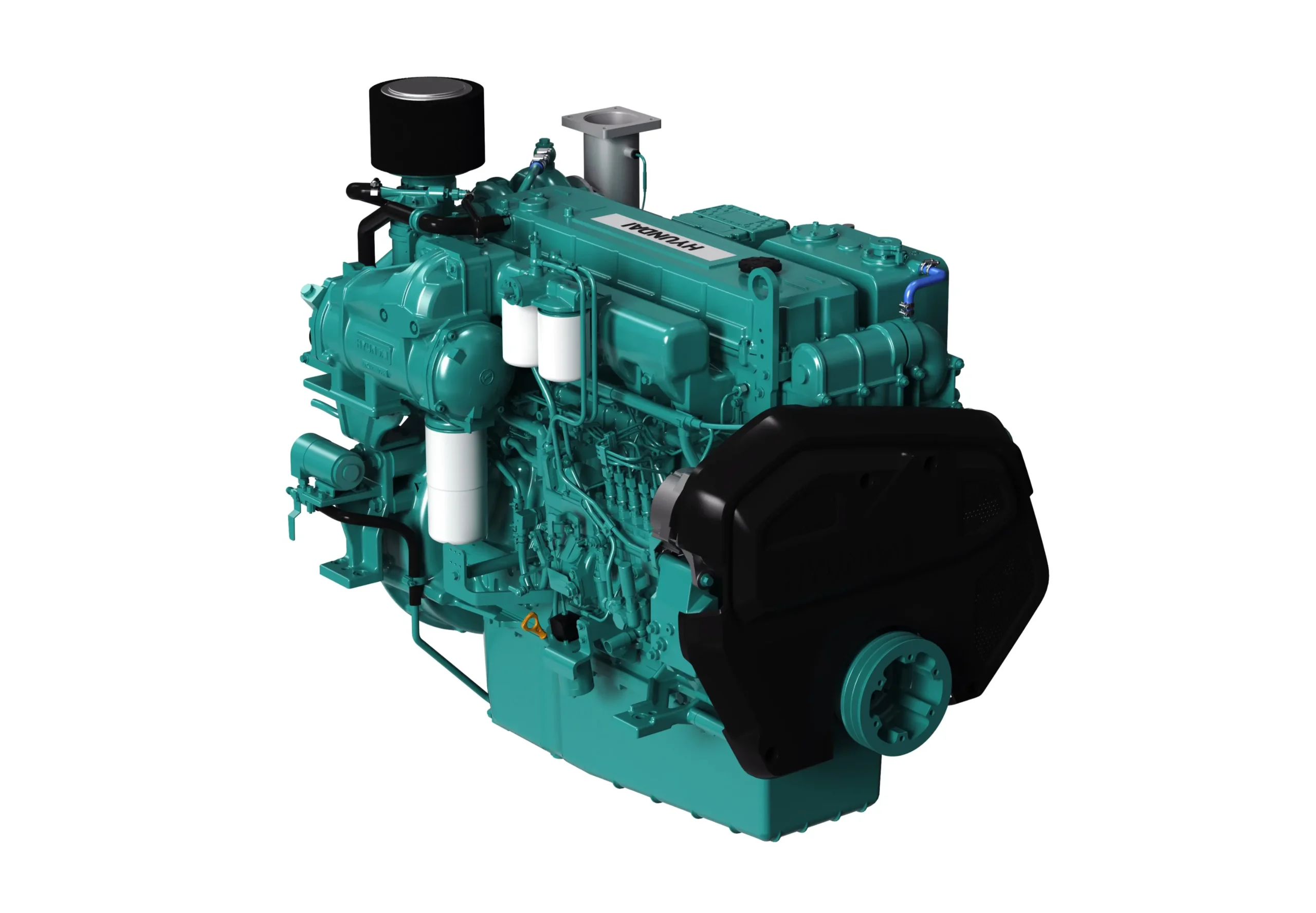

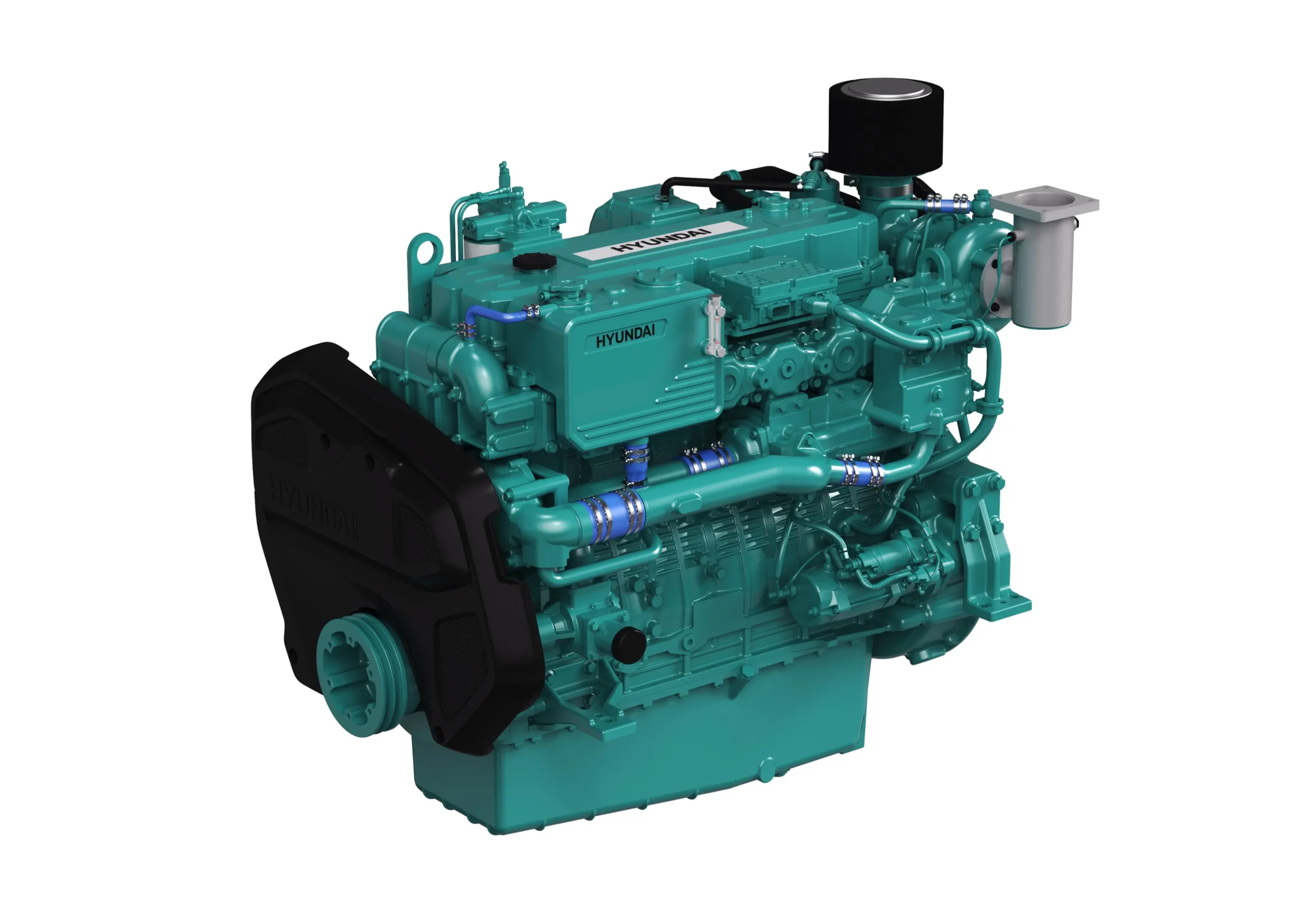

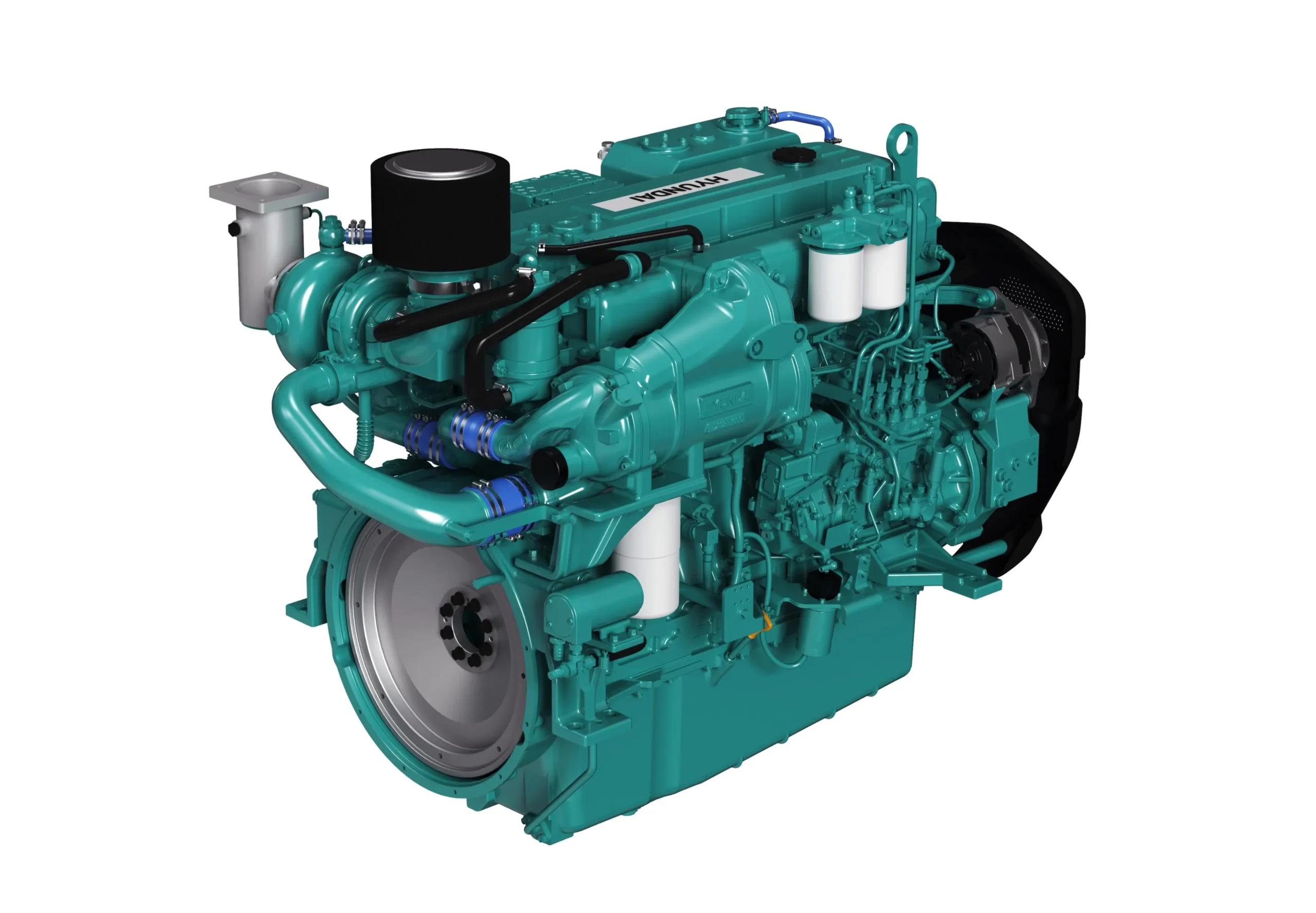

An 11 liter-class, IMO Tier II, inline engine (maximum output: 450-545 PS) mostly mounted on passenger/fishing boats and boats for fishing excursion.
This is a compactly designed, mechanically-controlled engine featuring good durability/fuel efficiency and convenience in maintenance. We provide a variety of options to meet customers’ needs. We guarantee customer satisfaction based on excellent performance of our engines.
| model | 4L126TI |
|---|---|
| Cylinder | L6 |
| Displacement | 11.1 ℓ |
| Power Range | 294-401 kW |
| Speed Range | 1,800-2,200 rpm |
| Aspiration | Turbo Charger & Inter Cooler |
| Bore x Stroke | 123 x 155 mm |
| kW(PS) @ rpm Continuous Duty | 294(400) @ 1,800 |
| kW(PS) @ rpm Heavy Duty | 331(450) @ 2,000 |
| kW(PS) @ rpm Medium Duty | 364(495) @ 2,100 |
| kW(PS) @ rpm Light Duty | 401(545) @ 2,200 |
| Dimension (L × W × H) | 1,131 x 904 x 1,153 mm |
| Dry Weight | 1,136 kg |
| Emissions | IMO Tier II |
