Description

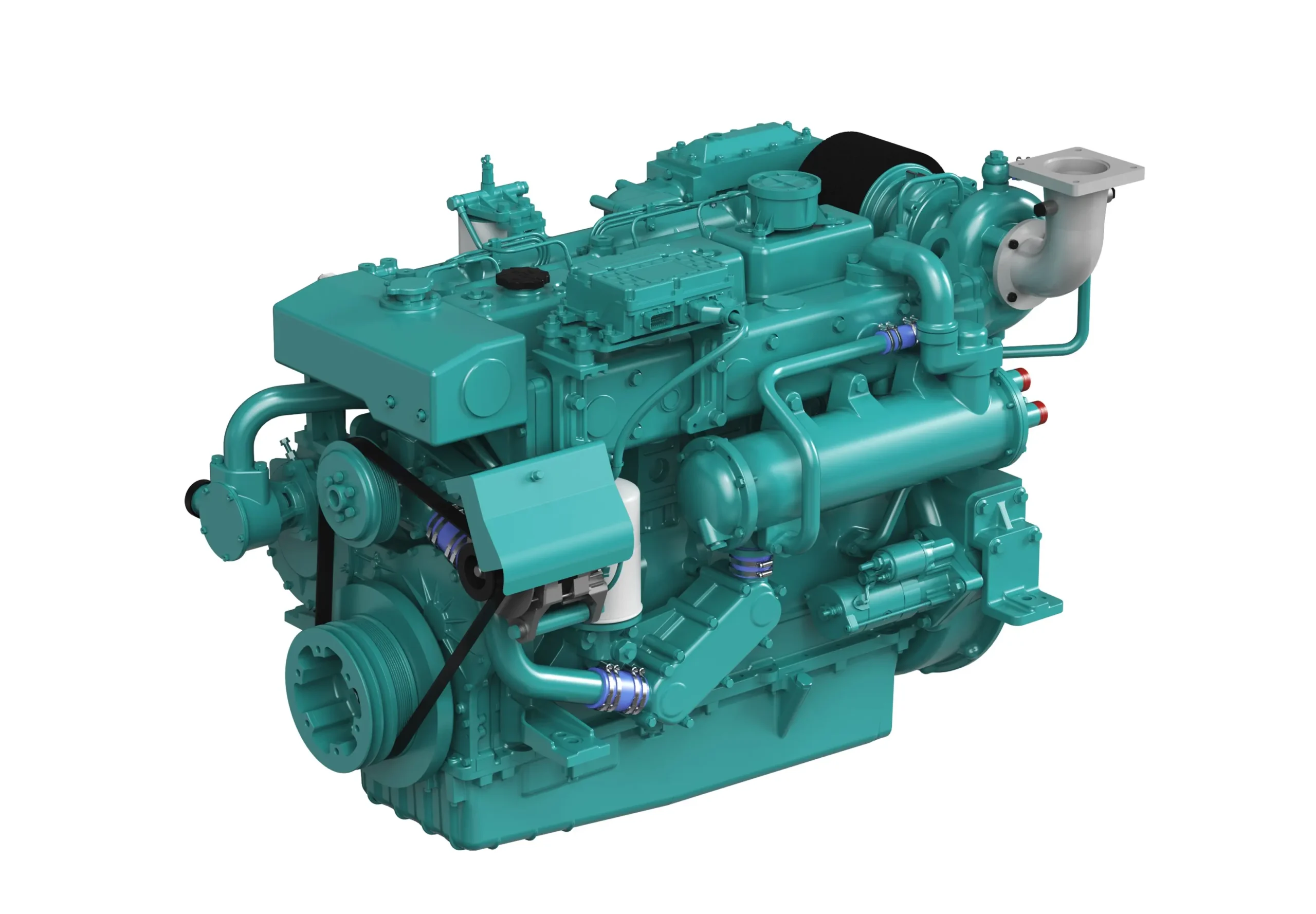

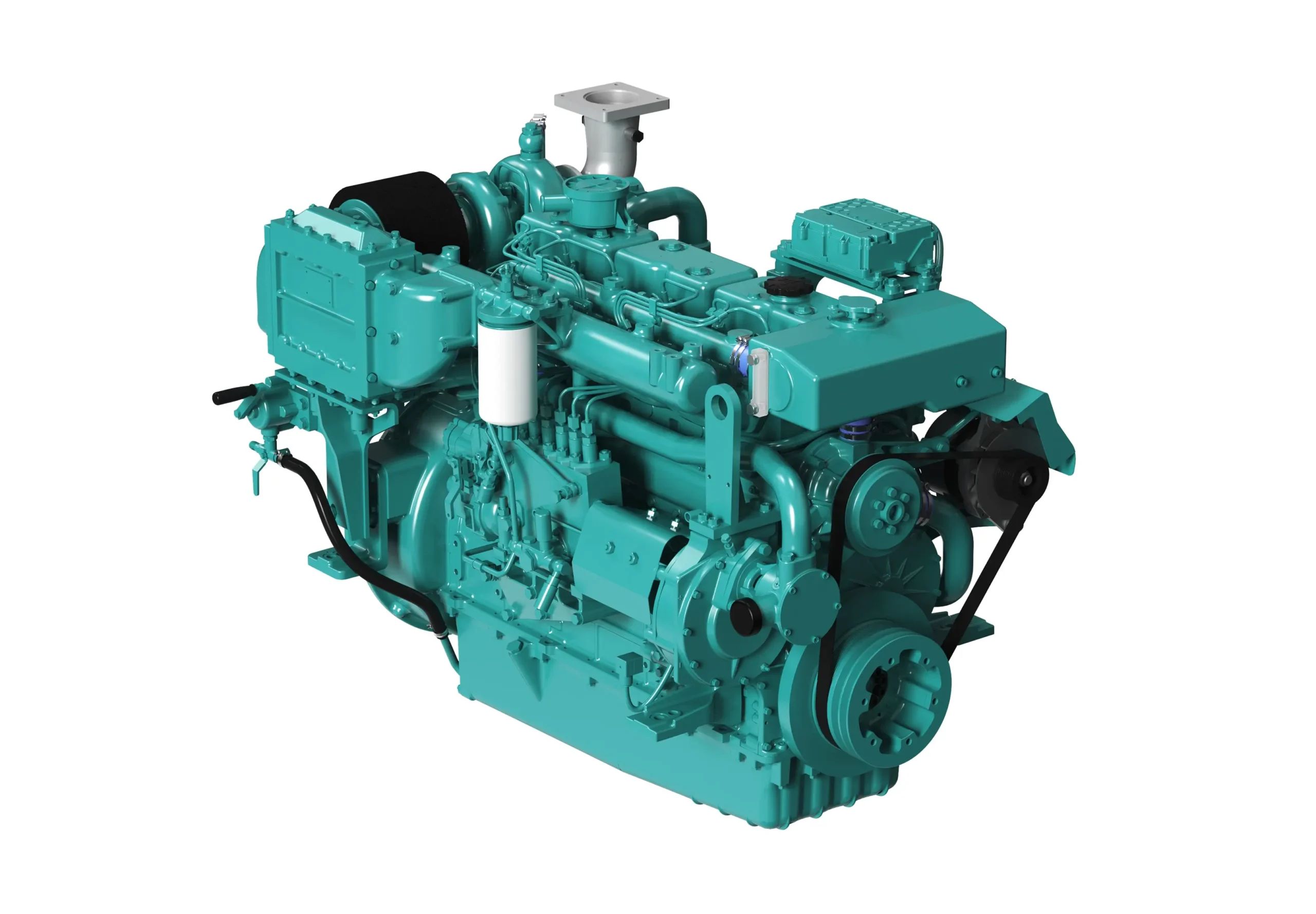

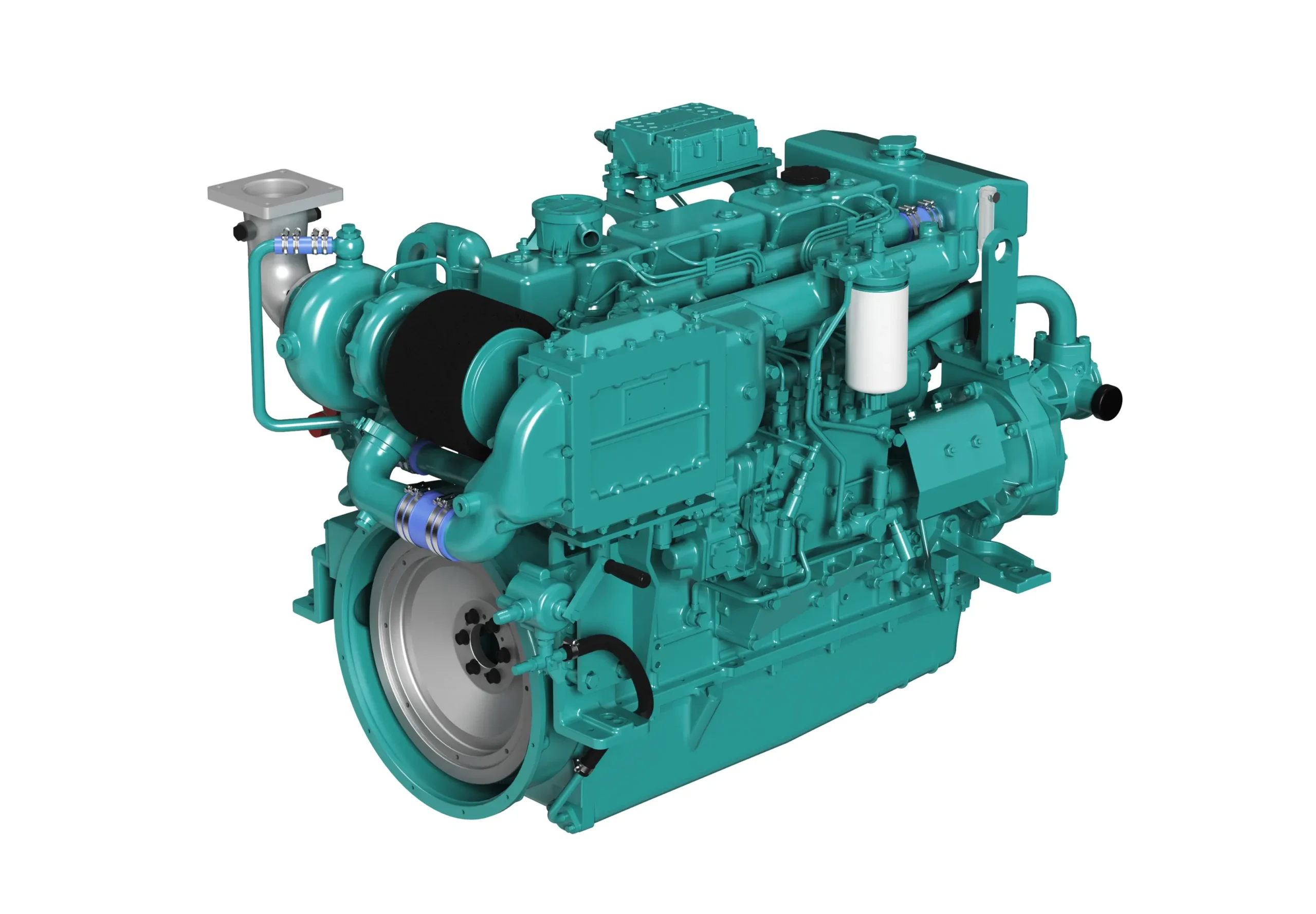

An 8 liter-class, IMO Tier II, inline engine (maximum output: 285~360 PS) typically mounted on passenger/fishing boats and boats for fishing excursions.
This compactly designed, mechanically-controlled engine offers outstanding durability and fuel efficiency as well as easy maintenance. We provide a variety of options to meet all our customers’ needs, and guarantee customer satisfaction based on the excellent performance of our engines.
| model | L086TI |
|---|---|
| Cylinder | L6 |
| Displacement | 8.1 ℓ |
| Power Range | 210-265 kW |
| Speed Range | 2,100-2,500 rpm |
| Aspiration | Turbo Charger & Inter Cooler |
| Bore x Stroke | 111 x 139 mm |
| kW(PS) @ rpm Continuous Duty | – |
| kW(PS) @ rpm Heavy Duty | 210(285) @ 2,100 |
| kW(PS) @ rpm Medium Duty | 232(315) @ 2,300 |
| kW(PS) @ rpm Light Duty | 265(360) @ 2,500 |
| Dimension (L × W × H) | 1,364 x 919 x 965 mm |
| Dry Weight | 790 kg |
| Emissions | IMO Tier II |
