Description

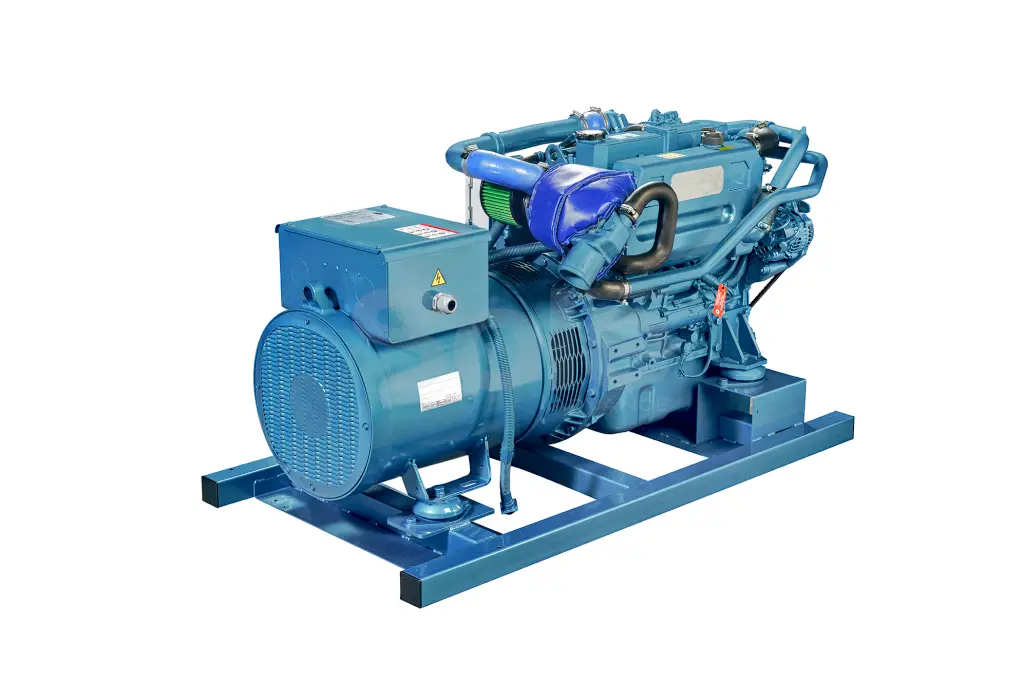

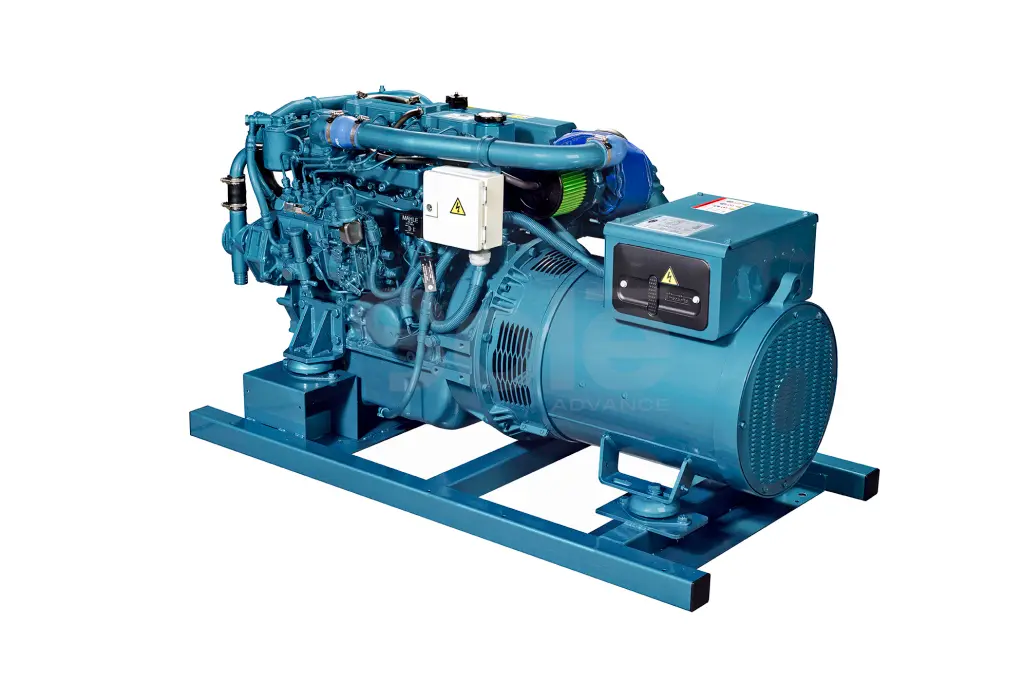

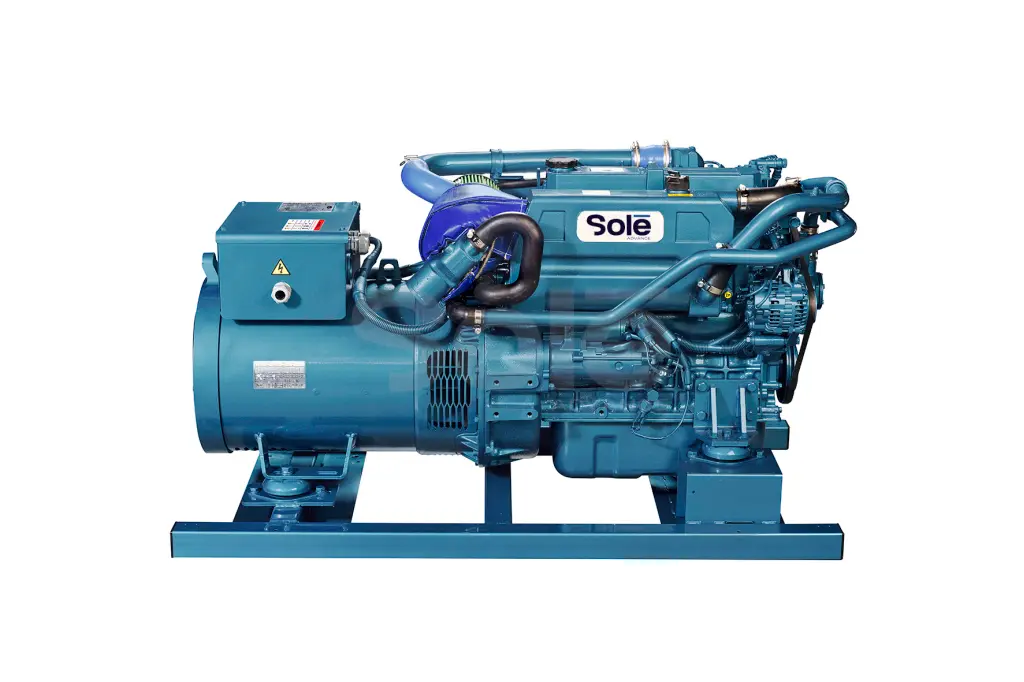

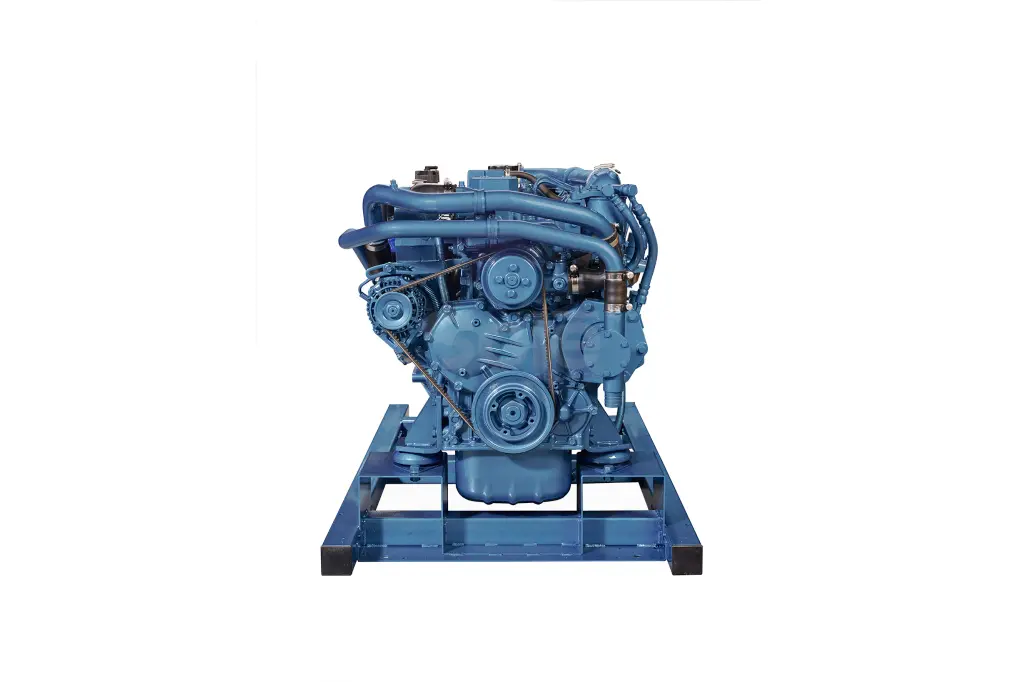

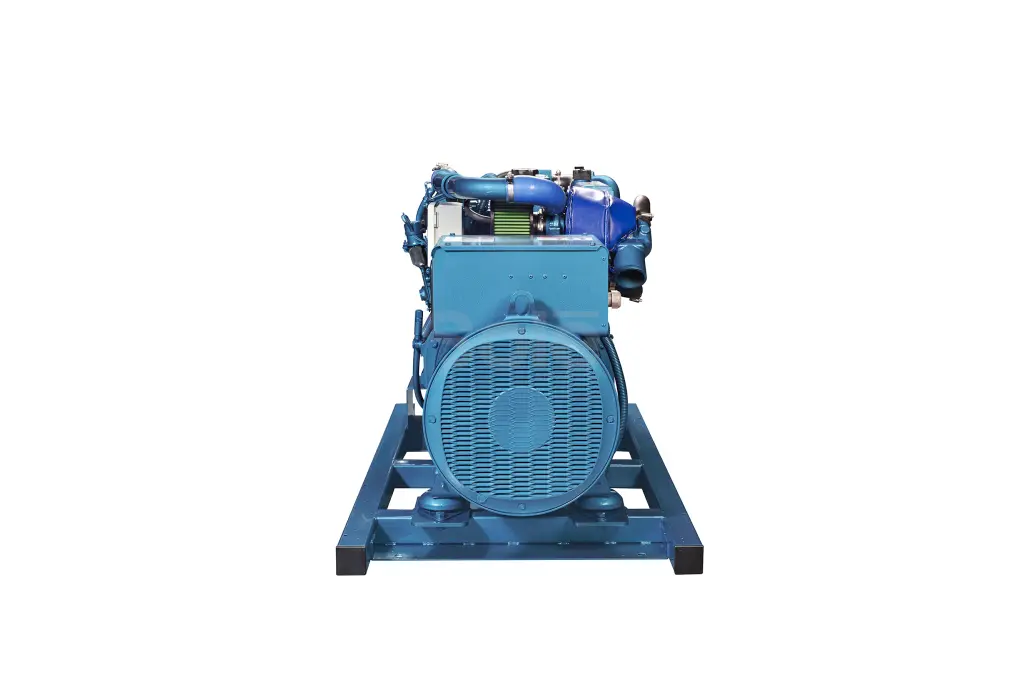

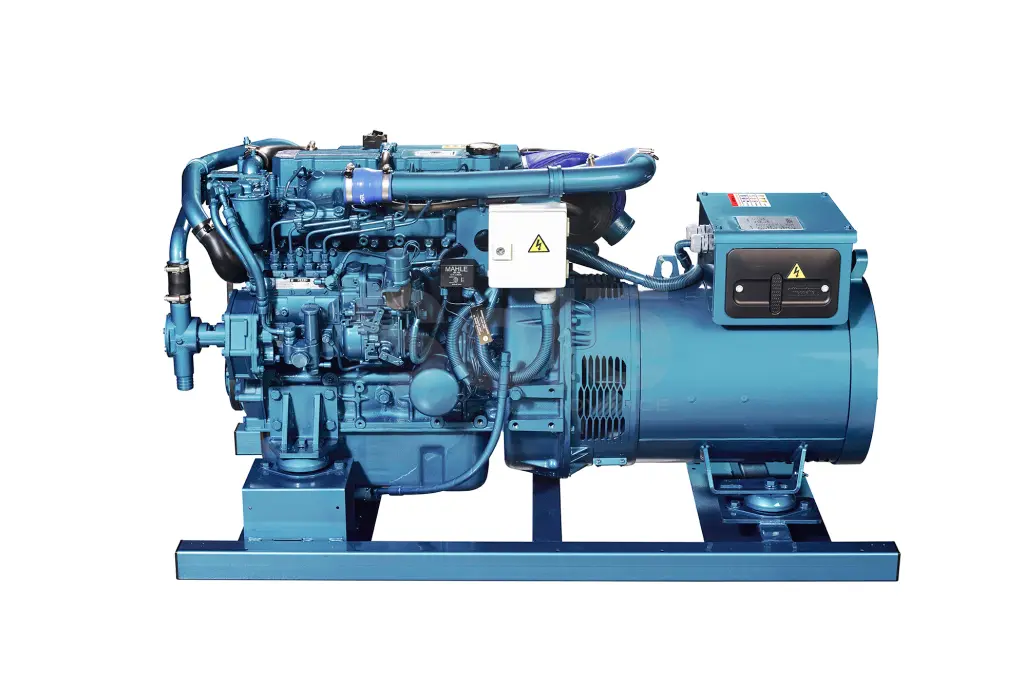

The new marine generator set 54 GTA/GTAC, is a 42,8 kW – 53,5 kVA three phases at 1800 rpm and 60 Hz gen set, assembled on Mitsubishi block. This output has been especially developed to satisfy the demand between 39,0 kVA (31,2 kW) and 58,3 kVA (46,7 kW). With a slightly larger size than its twin brother, the 40 GTA/GTAC, develops 19,3 kVA (15,5 kW) more. This marine generator set fits perfectly in those commercial boats which have a high electrical demand on restricted space. It is also available with sound shield (canopy) for a pleasant sailing; with a variety of kits to satisfy the need from the most demanding customers, and also available with DNV type approval from IACS.
| R. P. M. | 1800 RPM |
|---|---|
| KVA | 53,5 KVA |
| Maximum active power | 42,8 KWE |
| Frequency | 60 HZ |
| Phases | Three-Phase |
| Total length with canopy | 1605 MM |
| Total width with canopy | 740 MM |
| Total height with canopy | 841 MM |
| Total length without canopy | 1428 MM |
| Total width without canopy | 740 MM |
| Total height without canopy | 785 MM |
| No emissions | Yes |
