Description

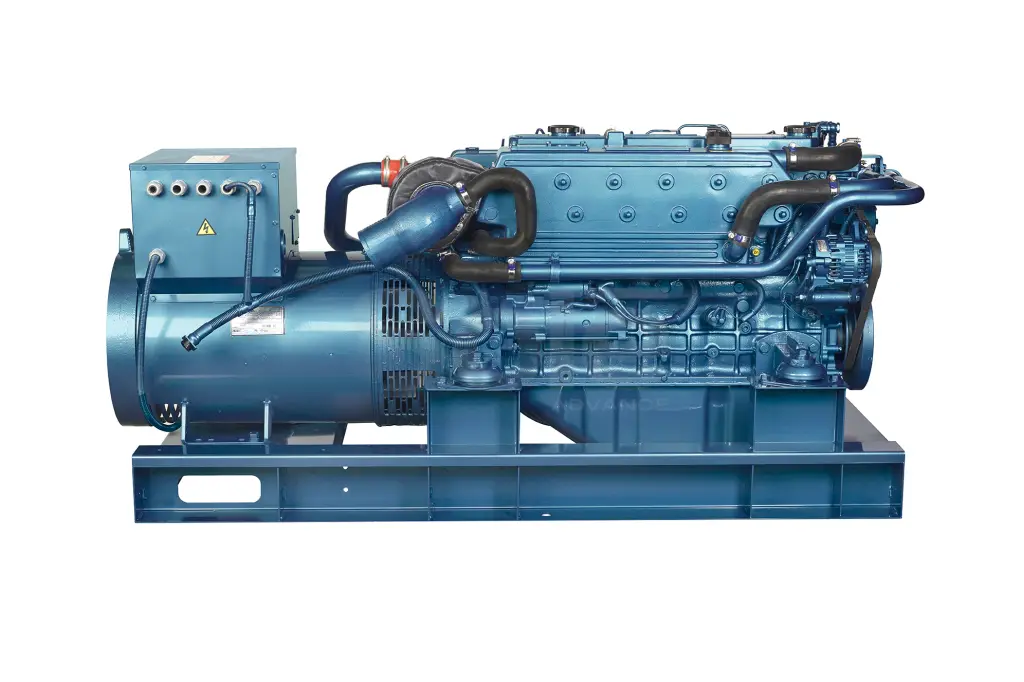

The marine generator set 84 GTA/GTAC is the twin brother of the 60 GTA/GTAC and meets the needs from the most demanding customers.
The six cylinder turbocharged block allows to develop the highest output smoothly with a compact size.
This marine generator set is the perfect partner for those commercial boats which requires an unit on continuous service.

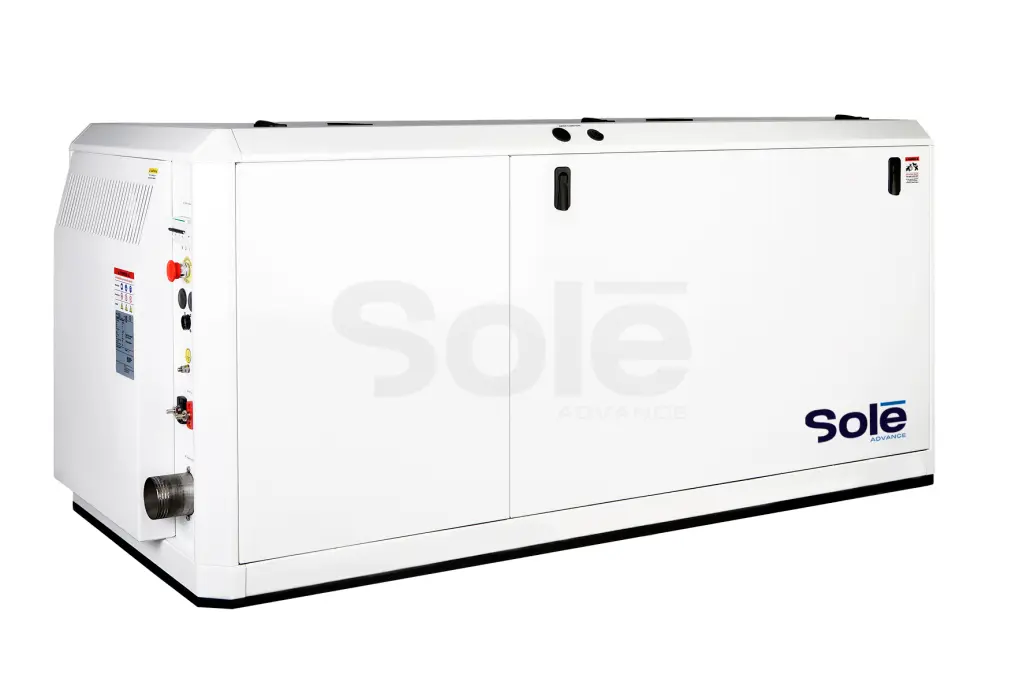

It is also available with sound shield (canopy), with a wide range of kits, with synchronism for parallel operation and type approval such as RMRS and DNV from IACS.

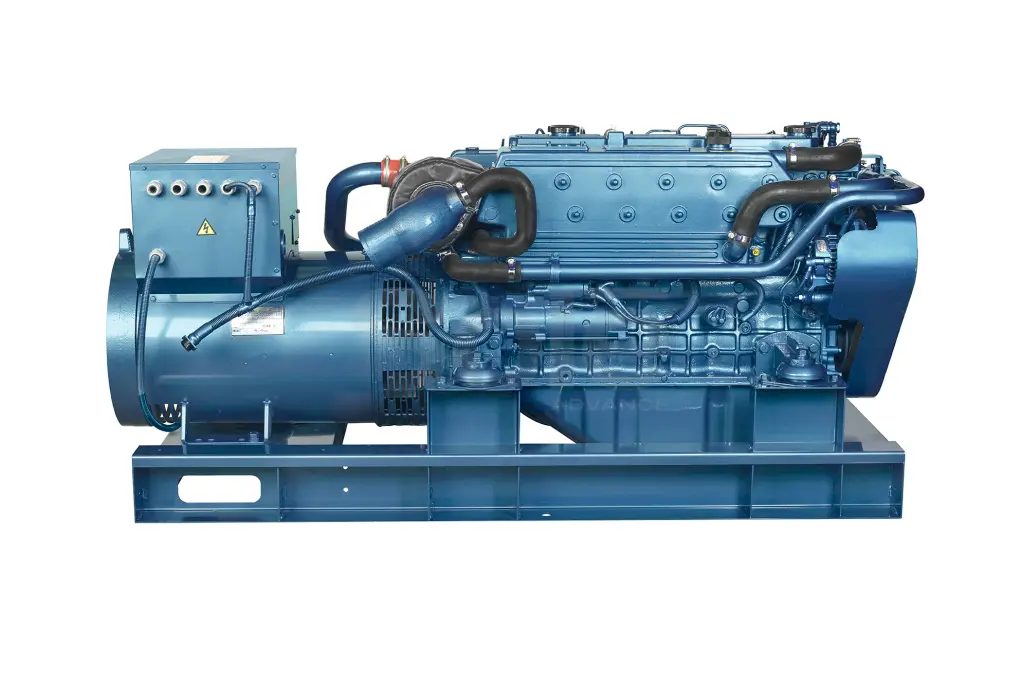

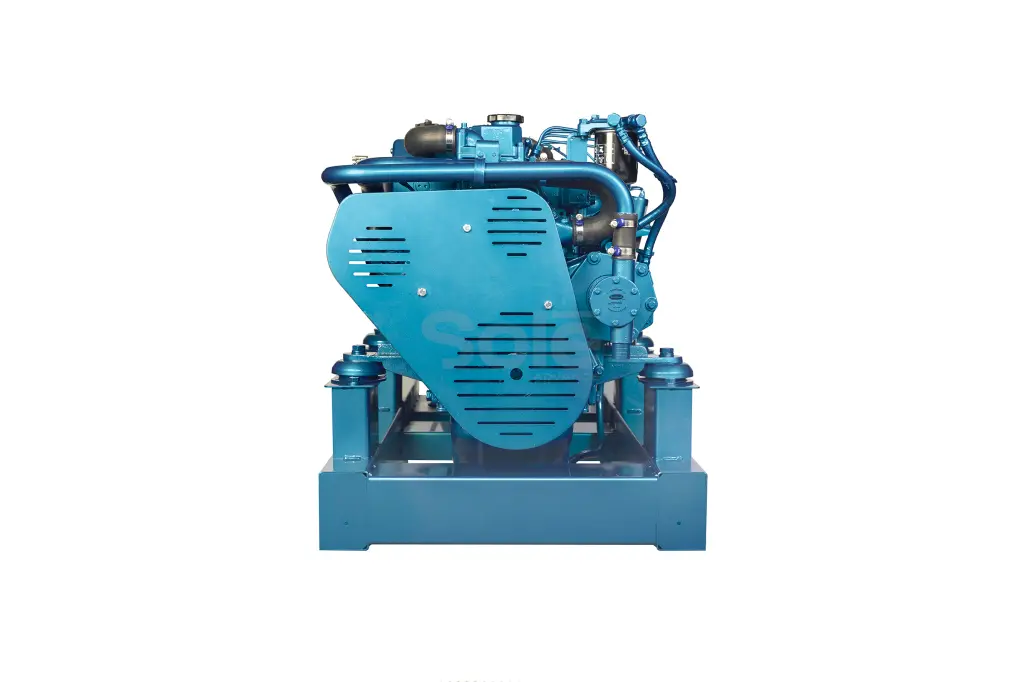

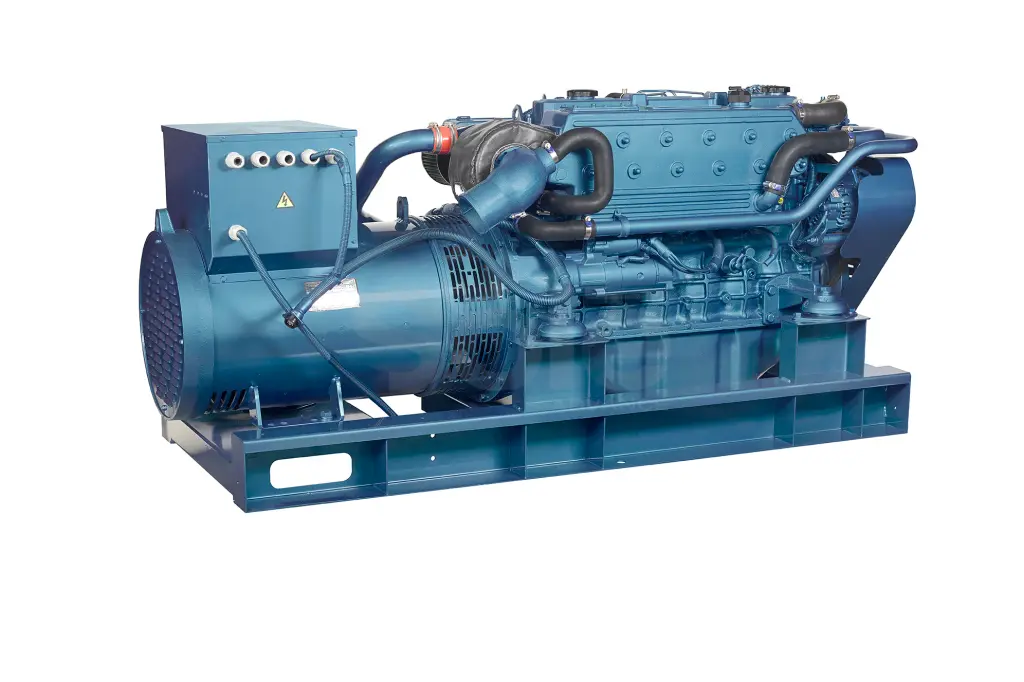

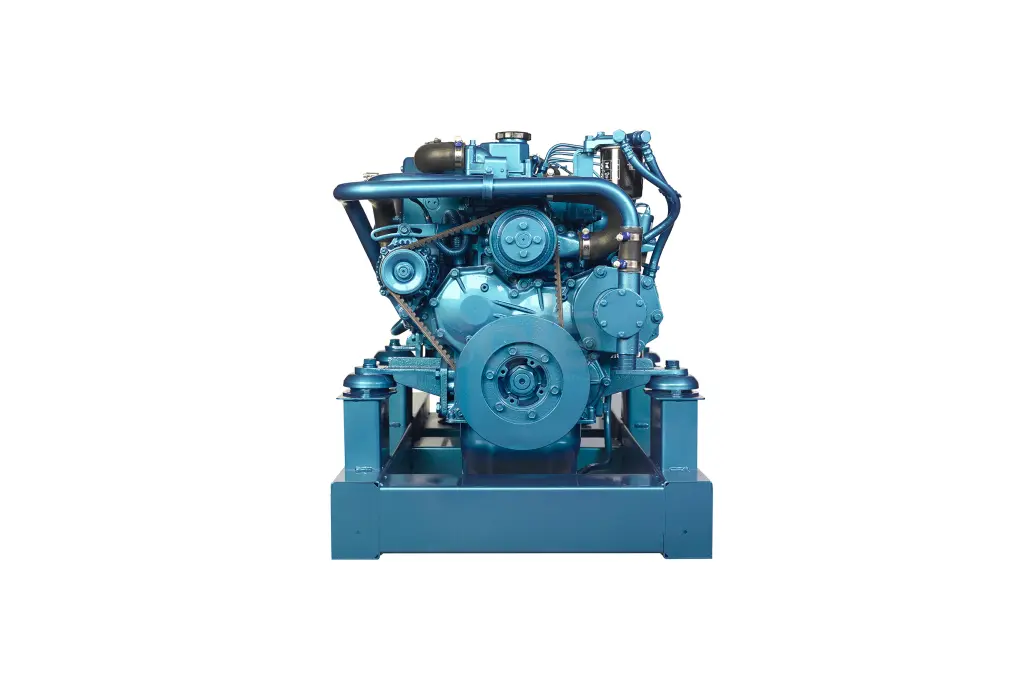

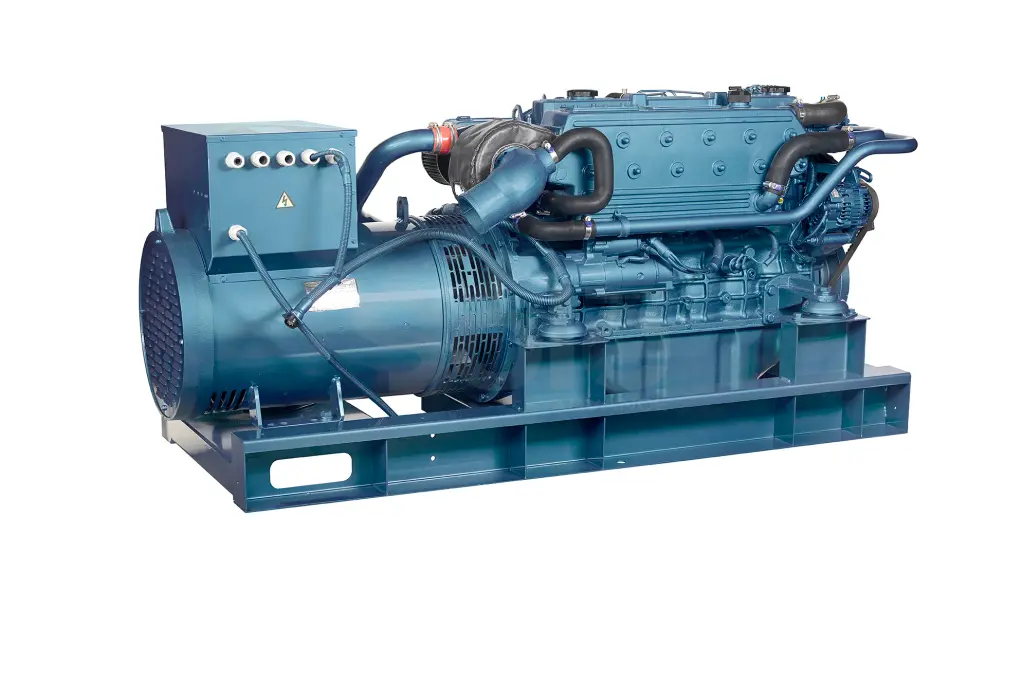

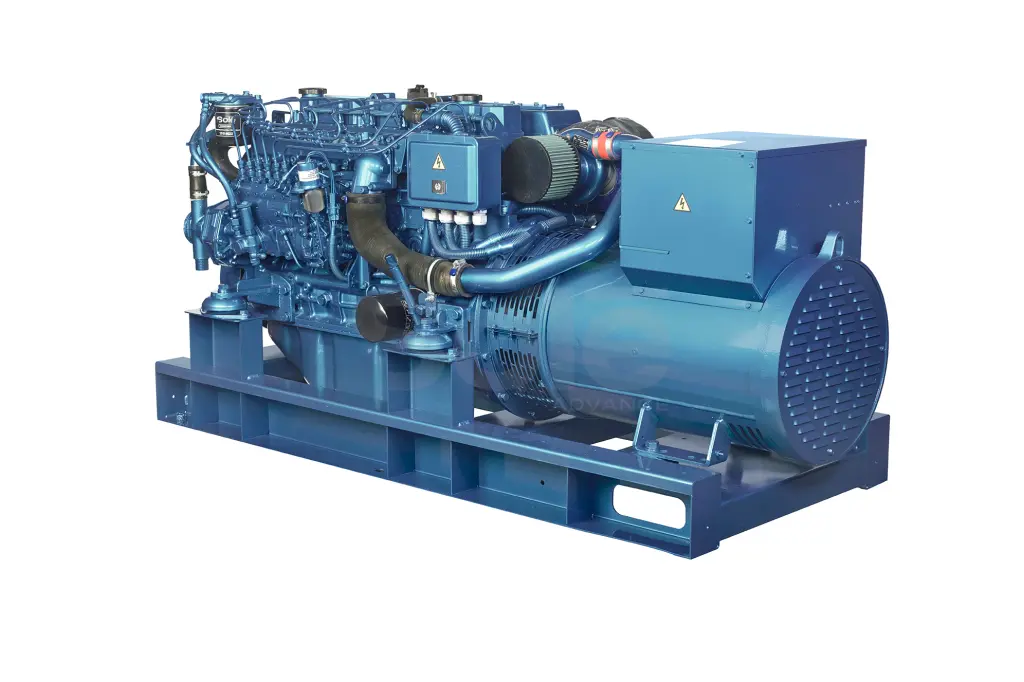

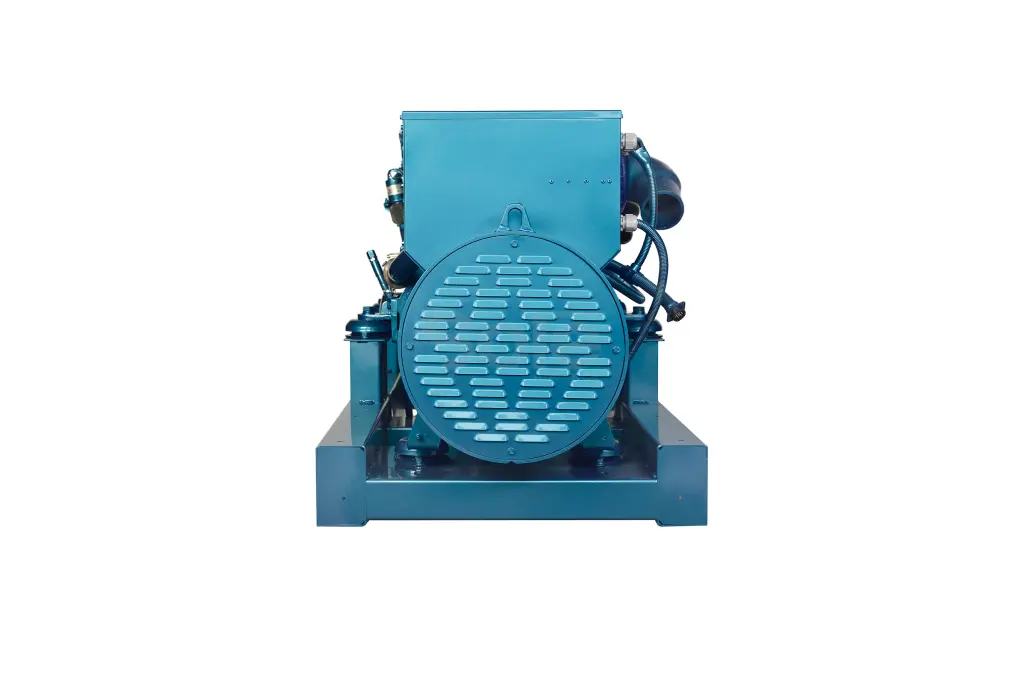

Assembled on a turbocharged Mitsubishi block, develops and output of 66,9 kW – 83,6 kVA at 1.800 rpm and 60 Hz.
| R. P. M. | 1800 RPM |
|---|---|
| KVA | 83,6 KVA |
| Maximum active power | 66,9 KWE |
| Frequency | 60 HZ |
| Phases | Three-Phase |
| Total length with canopy | 1903 MM |
| Total width with canopy | 840 MM |
| Total height with canopy | 848 MM |
| Total length without canopy | 1682 MM |
| Total width without canopy | 700 MM |
| Total height without canopy | 800 MM |
| No emissions | Yes |
