Description

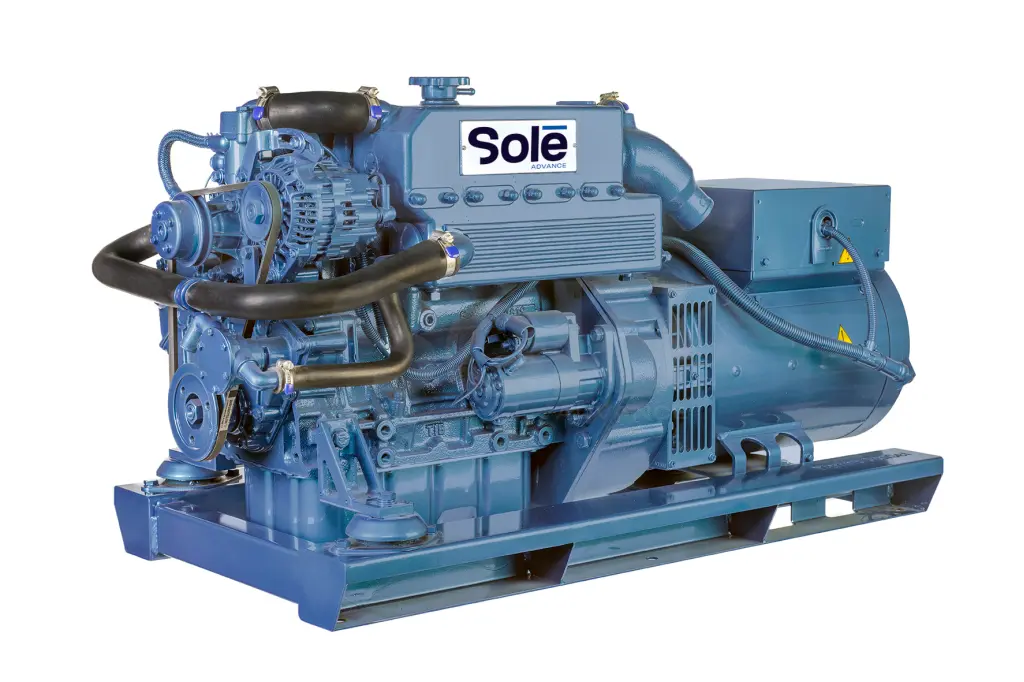

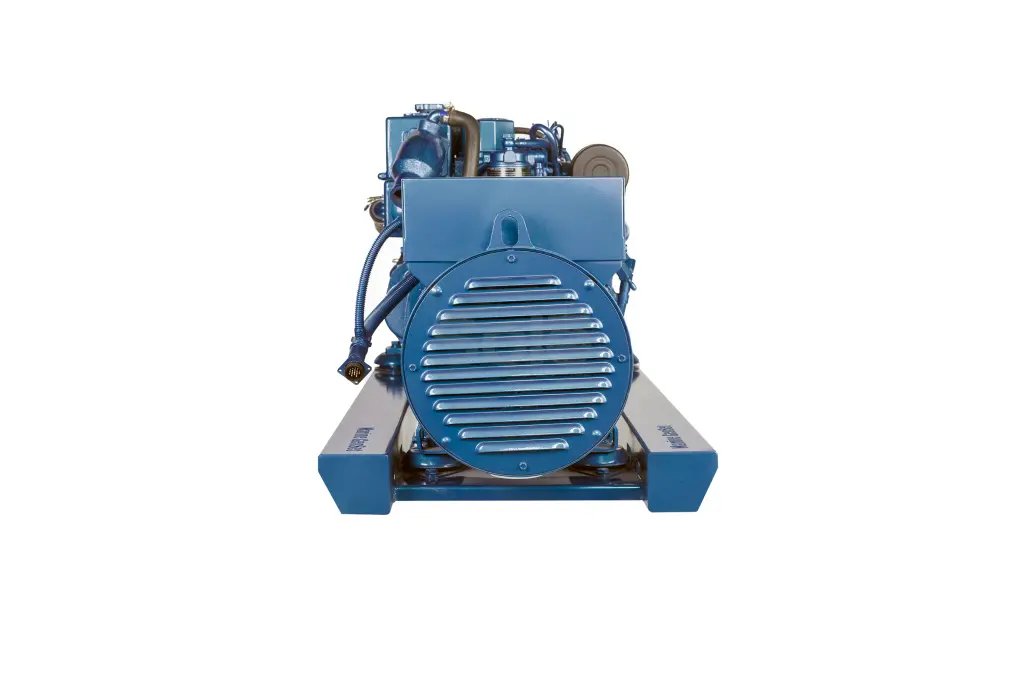

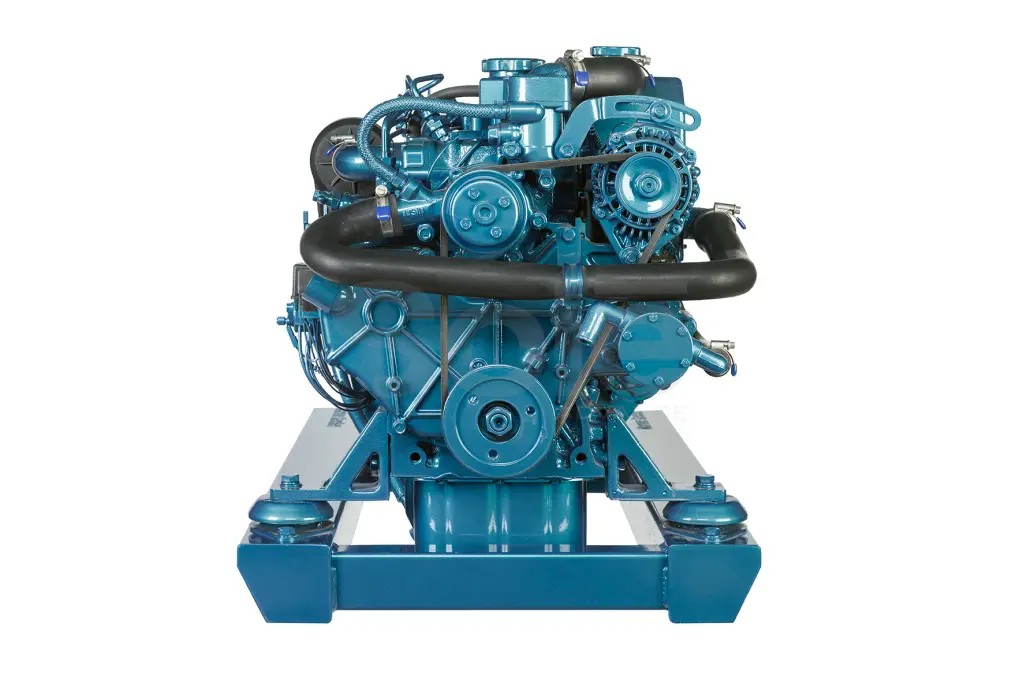

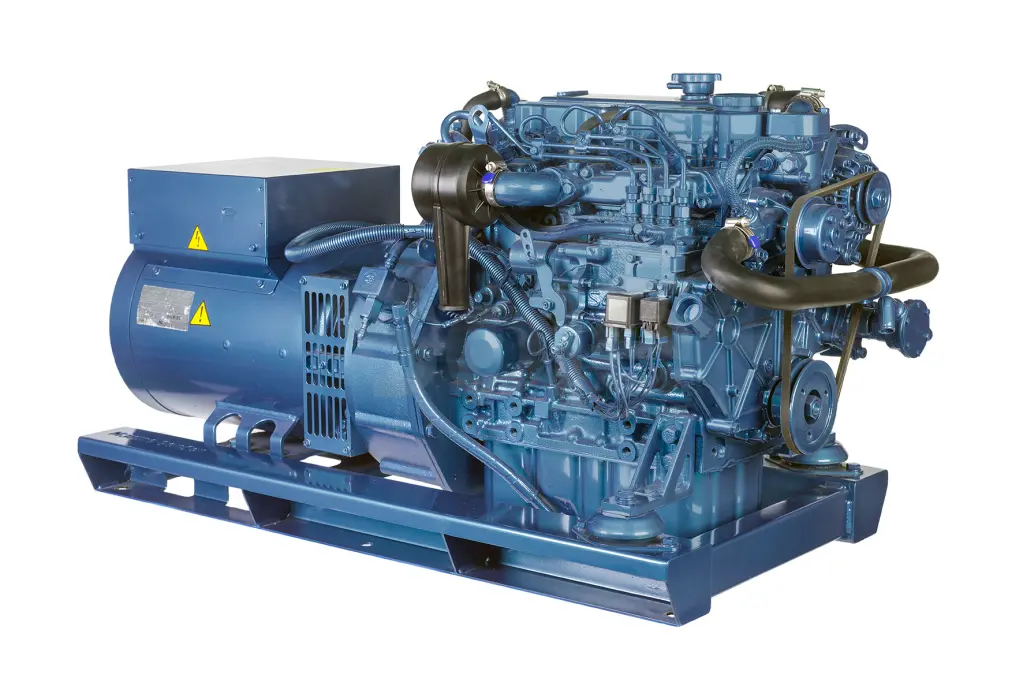

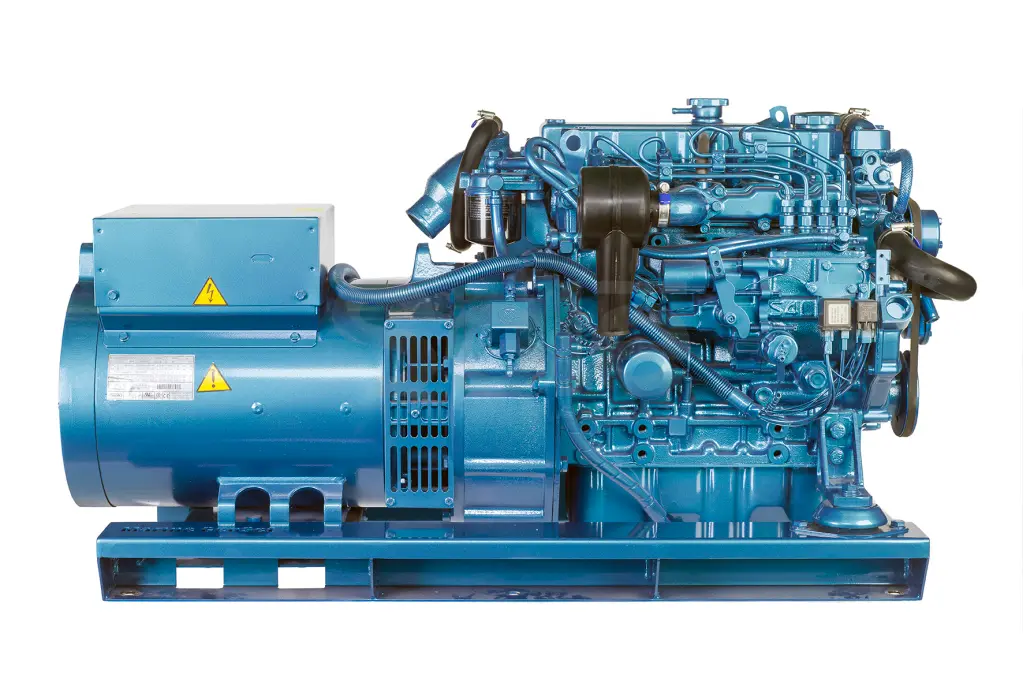

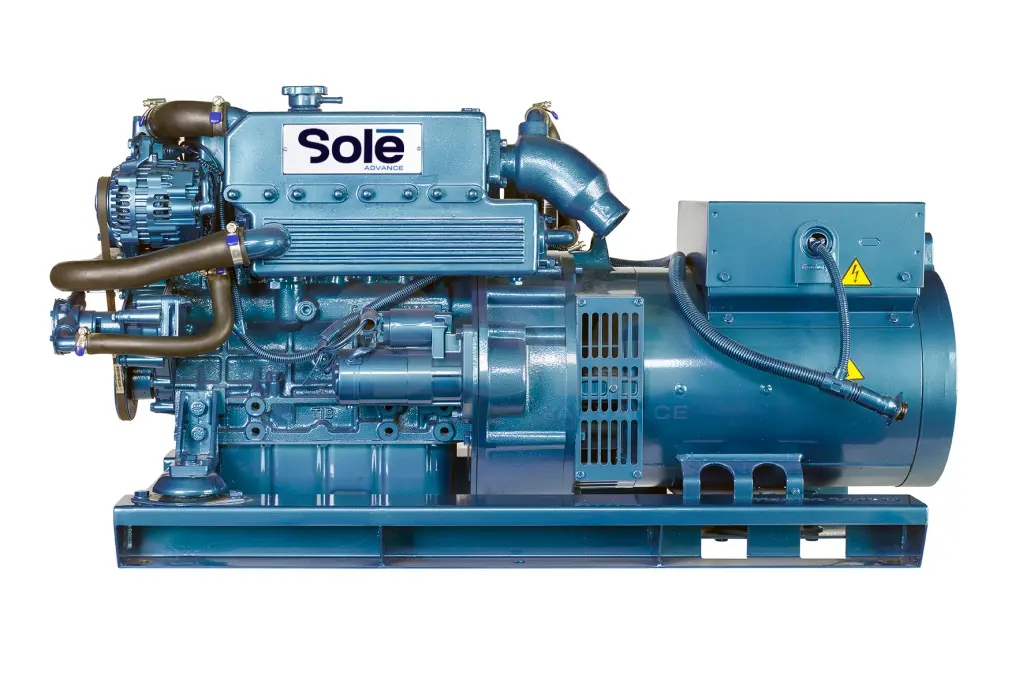

The G-25M-3 is one of the Solé marine generator of 3000 rpm range which means compact size. This range has been designed for commercial boats that require larger output with restricted space. The G-25M-3 fits very well on small fishing boats with larger energy demand. It is a single phase marine generator assembled on a 3 cylinder Mitsubishi engine block, performs 25,0 kW – 25,0 kVA at 3000 rpm and 50 Hz.n.
| R. P. M. | 3000 RPM |
|---|---|
| KVA | 25 KVA |
| Maximum active power | 25 KWE |
| Frequency | 50 HZ |
| Phases | Single-Phase |
| Total length with canopy | – MM |
| Total width with canopy | – MM |
| Total height with canopy | – MM |
| Total length without canopy | 1213 MM |
| Total width without canopy | 560 MM |
| Total height without canopy | 619 MM |
| No emissions | Yes |
